The PEController come an optional intelliSENS software integration license which enables data acquisition on all 16 simultaneous sampling Channels at 100 KSps. The intelliSENS software is a ready-to-use application software designed to assist students, researchers, and engineers in the field of power electronics to develop, monitor & test power electronics systems by replacing multiple lab equipment, such as oscilloscopes, spectrum analyzers, power analyzers, and recorders. It can perform the following:

These controllers are capable of implementing the control system directly from the simulation software used to simulate the whole power electronics system. This accelerates the research and development of a high-performance control system since it bypasses the embedded programming stage which is the standard in the industry.

These controllers require embedded programming which gives a lot of flexibility and optimization space to implement the control system and auxiliary functions. However, since embedded programming is a lengthy and difficult task, these controllers are usually tested initially with HIL Real-Time Simulators before moving to power electronics hardware implementation.

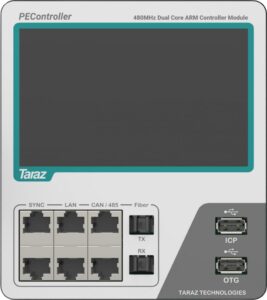

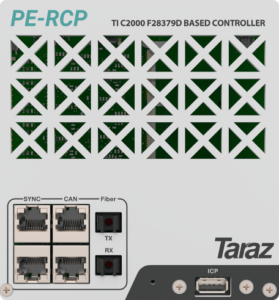

Taraz Technologies controllers come in two form factors. The standalone controller option such as the PE-RCP Box and the controller modules option such as the PEController and PE-RCP (same as the PE-RCP Box in module form factor). The controller modules are panel mountable which makes them ideal for final product integration once the development is complete. In addition, to accelerate the development of embedded control systems, embedded C libraries for the PEController are also provided along with multiple application examples, which will save a lot of initial development time.

Programming

Performance & GUI

• 480MHz (M7) / 240MHz (M4), Dual-Core
• 5″ Touch Display

Performance & GUI

• 16CH, 250ksps @ 16-Bit, ±10V Input
• Simultaneous Sampling
• High-Accuracy Dedicated ADC Chips

Communications

• LAN, CAN, RS-485, Fiber Optics & Sync
• High-Speed USB for DAQ

Programming

Performance

• 200MHz, Dual-Core

Performance & GUI

• 8CH, 360KSps @ 16-Bit, ±10V Input
• 8CH, 430KSps @ 12-Bit, ±10V Input

Communications

• CAN, Fiber Optics & Sync

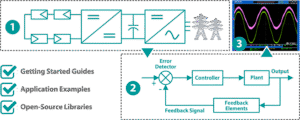

The PELab is supported by embedded C libraries (for PEController), multiple application examples and a getting started guide. The following application examples have been implemented:

• V/f Control of AC Induction Motor

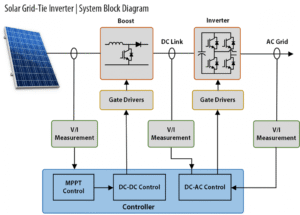

• Three-Phase Grid-Tie Inverter with Boost Converter

In addition, more resources will be added including video tutorials and demos. Please check the technical resources page for the latest material.
