Power electronics inverters and converters perform the most important function in any power electronics system, that is, the power conversion. These converter kits are modular and scalable in nature. Hence, can be used for fast prototyping and validation of many popular converter topologies, including but not limited to, single & multi-phase inverters, Buck/Boost converters, single & multi-phase active rectifiers and Modular Multilevel Converters (MMCs). These converter modules can cover a wide variety of applications, such as, Variable Frequency Drives (VFDs), Photo Voltaic (PV) inverters and Maximum Power Point Tracking (MPPT) converters. Thus, making them suitable for your research and development (R&D) projects.



Features

  • Optional IGBT and SiC Power Switches.
  • Optimized for Research and Education.
  • Indication LEDs and Test Points for Instant Feedback.
  • Easy and Simple Connectivity to Reduce Prototyping Time.
  • Scalability for Building Complex Power Systems Without Hardware Knowledge
Gate Driver Boards

Converter Modules

These inverters and converters are available as development kits, that are, assemblies of converter modules with their respective gate driver boards. The available configurations are Half Bridge, Full Bridge (Single Phase), Neutral Point Clamped (NPC) and 3 phase inverter development kits. Moreover, these development kits are available with optional IGBT and SiC switches to cater for different frequency requirements of your research project and can be used in applications that require as much as 40KW of power.



Half Bridge Leg

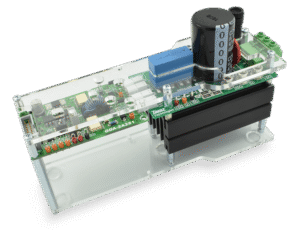

Half Bridge (Buck/Boost/MPPT) Development Kit
SPM-HB-KIT
350V | 1.2kW

Applications: > Boost Converter > Buck Converter > Modular Multi-Level Converter (MMC) > Half Bridge Converter

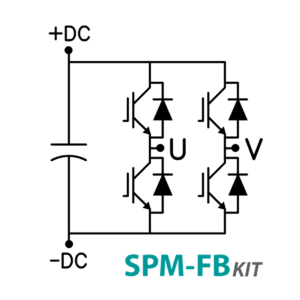

Full Bridge Inverter

Full Bridge Inverter
Full Bridge Inverter
600V | 2.4kW

Applications: > Interleaved Boost Converter > Dual Active Bridge (DAB) Converter > LLC Resonant Converter > Full Bridge Inverter

3 Phase Inverter

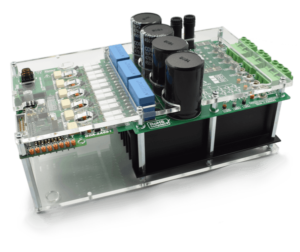

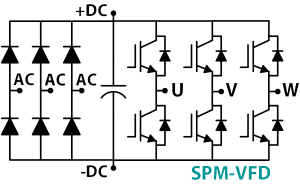

SiC/IGBT 3 Phase Inverter Development Kit
SPM-VFD-KIT
600V | 6.1kW

Applications: > 3 Phase AC Motor Drive > Active Rectifier > Single Phase Inverter with Boost > Three Phase Inverter

High Power 3 Phase Inverter

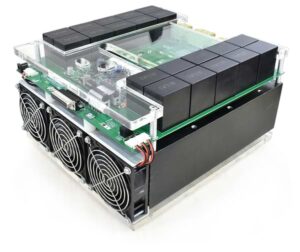

40kW SiC/IGBT 3 Phase Inverter Stack
40kW SiC/IGBT 3 Phase Inverter Stack
750V | 40kW

Applications: > 3 Phase AC Motor Drive > Active Rectifier > Single Phase Inverter with Boost > Three Phase Inverter
