Applications

3 Phase R&D Inverters
Active PFC Rectifiers
Switched Mode Power Supplies

Features

Short circuit protection with soft shutdown
Active miller and output UVLO protection
707 Vdc working voltage with 3 KVac isolation
250ns propagation delay, 50KV/us CMR
Configurable dead-time, PWM/Indep. inputs
Fault feedback and fault latch protection

Specifications

Parameter	Value	Unit	Parameter	Value	Unit
Output Channels	6	–	Output Voltage	15/0	V
Peak Output Current	2	A	Avg. Output Power per Channel	600	mW
Input to Output Isolation	3000	Vac	Max. Working Insulation Voltage	707	V
Max. Propagation Delay	250	ns	Min. Common Mode Rejection (CMR)	50	kV/us
Operating Temperature	-25 to +70	°C	Active Miller Clamp Current	1.7	A
Input Modes	Configurable PWM / Dual	–	Dead-Time	User Adjustable	–

* Note 1: All ratings are given at Vs=15V and 25°C ambient temperature unless otherwise specified.

FAQs

How to choose gate resistance for my application?

Selecting the right value of the external gate resistance is essential in limiting the noise and energy loses in the switching operation and it’s selection may vary depending on the transistor being used. The data sheet of the transistor IC shows recorded test values of operation under optimal condition which also includes the value of external gate resistance (R_GATE) which enables switching while minimizing turn on (E_on) and turn off (E_OFF) loses.

How to select gate driver output voltage?

The optimal value of gate driver output voltage depends on the switch being used. Usually SiC FETs come in multiple recommended voltages such as +20/-5V, +18/0V and +15/-5V. You can find more information in Absolute Maximum Ratings table in switch datasheet.

What is the difference between IGBT & SiC gate driver?

SiC gate drivers have higher common mode rejection and low propagation delay as compared to IGBT gate drivers, making them suitable for higher speed applications while, at the same time, having all the advanced protection features.

How can I connect these gate driver boards to my circuit?

Each output channel of the gate driver board has a male plug connector which can be directly connected to the gate-source/emitter terminal with the selected gate resistance to provide with the required gate voltage for the switching operation.

Related Products

Reviews

There are no reviews yet.

Be the first to review “GDA-2A6S1 6 Channel IGBT Gate Driver Board”

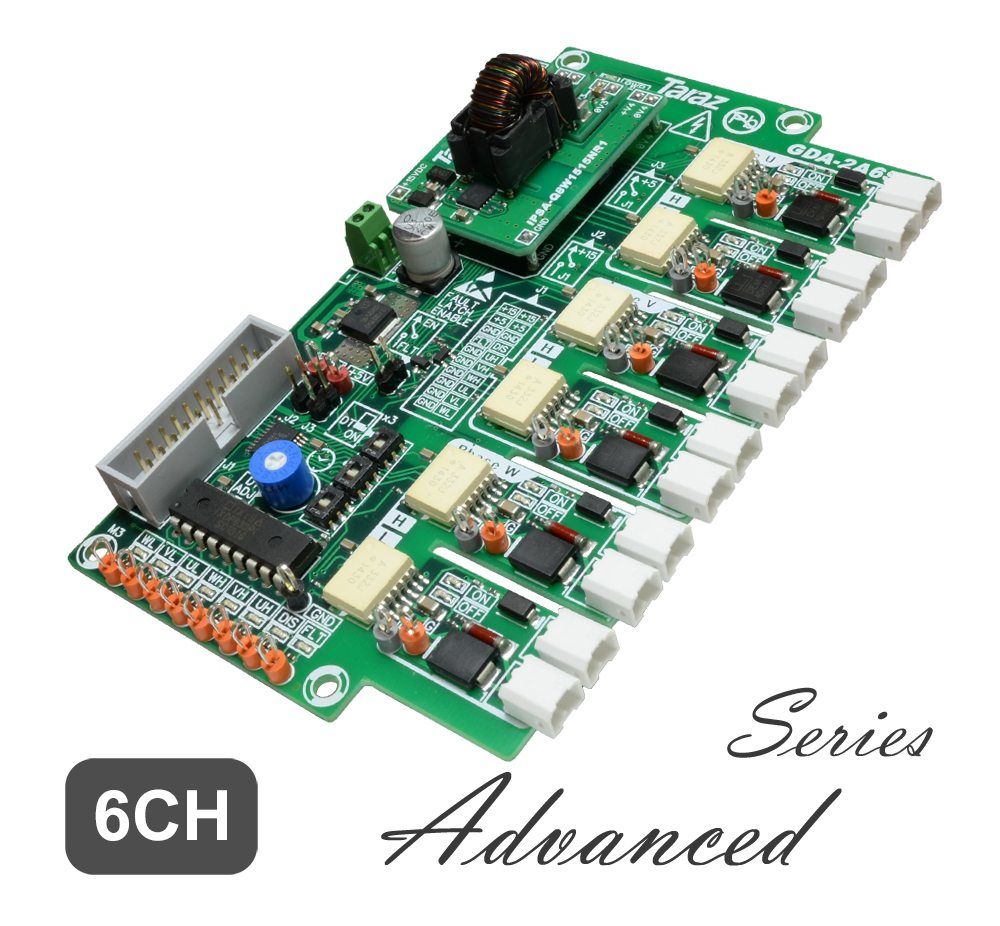

GDA-2A6S1 6 Channel IGBT Gate Driver Board
