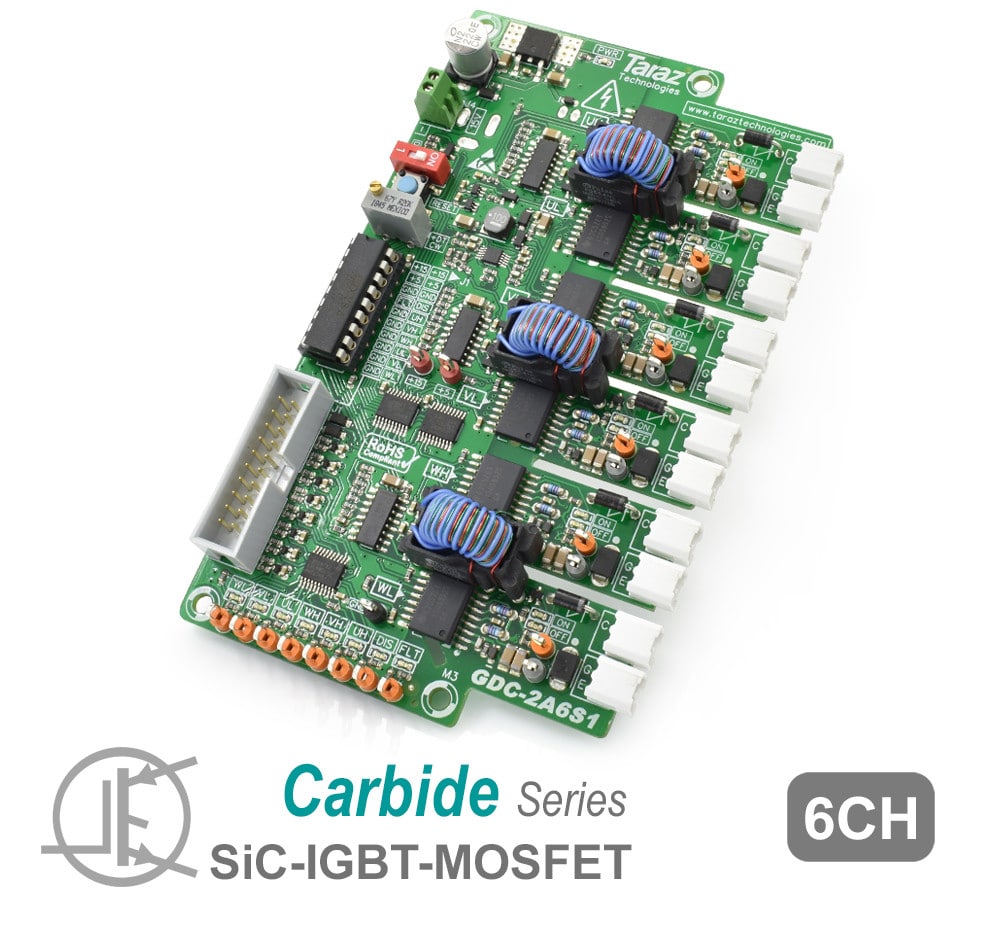

GDC-2A6S1 6 Channel SiC Gate Driver Board

GDC-2A6S1 6 Channel SiC Gate Driver Board

238 €

Be the first to leave a review.
Categories: SKU: GDX-4A4S1
Share this
Tweet this
Email this







Applications

  • 6 Switch Isolated SiC/IGBT/MOSFET Gate Driver

  • AC & Brushless DC Motor Drives

  • 3 Phase PFC Rectifiers

  • R&D Inverters

Features

  • Suitable for 1200V SiCs, IGBTs & MOSFETs up-to 120A

  • 110ns propagation delay, 100KV/us CMR

  • Short circuit protection with soft shutdown

  • Active miller and output UVLO protection

  • 1200 Vdc working voltage with 3 KVac isolation.

  • Configurable dead-time, PWM/Indep. inputs

  • Fault feedback and fault latch protection

    •





Specifications

ParameterValueUnitParameterValueUnit
Output Channels6–Output Voltage15/0V
Peak Output Current2AAvg. Output Power per Channel500mW
Input to Output Isolation3000VacMax. Working Insulation Voltage707V
Max. Propagation Delay75nsTyp. Common Mode Rejection (CMR)45kV/us
Operating Temperature-25 to +70°CDead-TimeResistor Programmable–
Input ModesPWM or High-Low or Independent**–

* Note 1: All ratings are given at Vs=15V and 25°C ambient temperature unless otherwise specified.



FAQs

Selecting the right value of the external gate resistance is essential in limiting the noise and energy loses in the switching operation and it’s selection may vary depending on the transistor being used. The data sheet of the transistor IC shows recorded test values of operation under optimal condition which also includes the value of external gate resistance (RGATE) which enables switching while minimizing turn on (Eon) and turn off (EOFF) loses.

The optimal value of gate driver output voltage depends on the switch being used. Usually SiC FETs come in multiple recommended voltages such as +20/-5V, +18/0V and +15/-5V. You can find more information in Absolute Maximum Ratings table in switch datasheet.

SiC gate drivers have higher common mode rejection and low propagation delay as compared to IGBT gate drivers, making them suitable for higher speed applications while, at the same time, having all the advanced protection features.

Each output channel of the gate driver board has a male plug connector which can be directly connected to the gate-source/emitter terminal with the selected gate resistance to provide with the required gate voltage for the switching operation.
