Applications

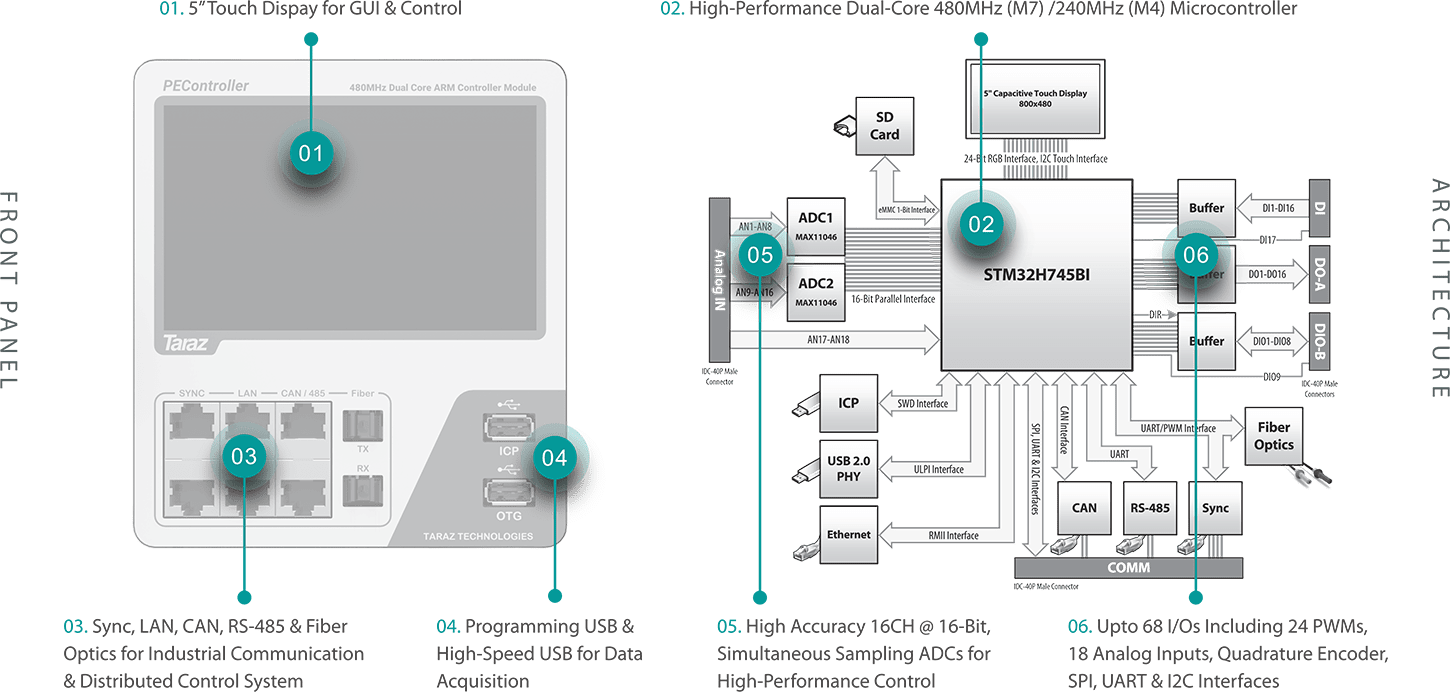

The PEController is ideal for power electronics inverters and converters control system implementation due to its high-performance architecture. It is considered a complete control, communication, and user interface solution without the need for any additional controllers. In addition, the open-source embedded C libraries will greatly accelerate the development cycle of power electronics converters due to the available application examples. Due to its integration in the PELab systems, complete R&D development is possible prior to its integration into the final industrial products.

Applications

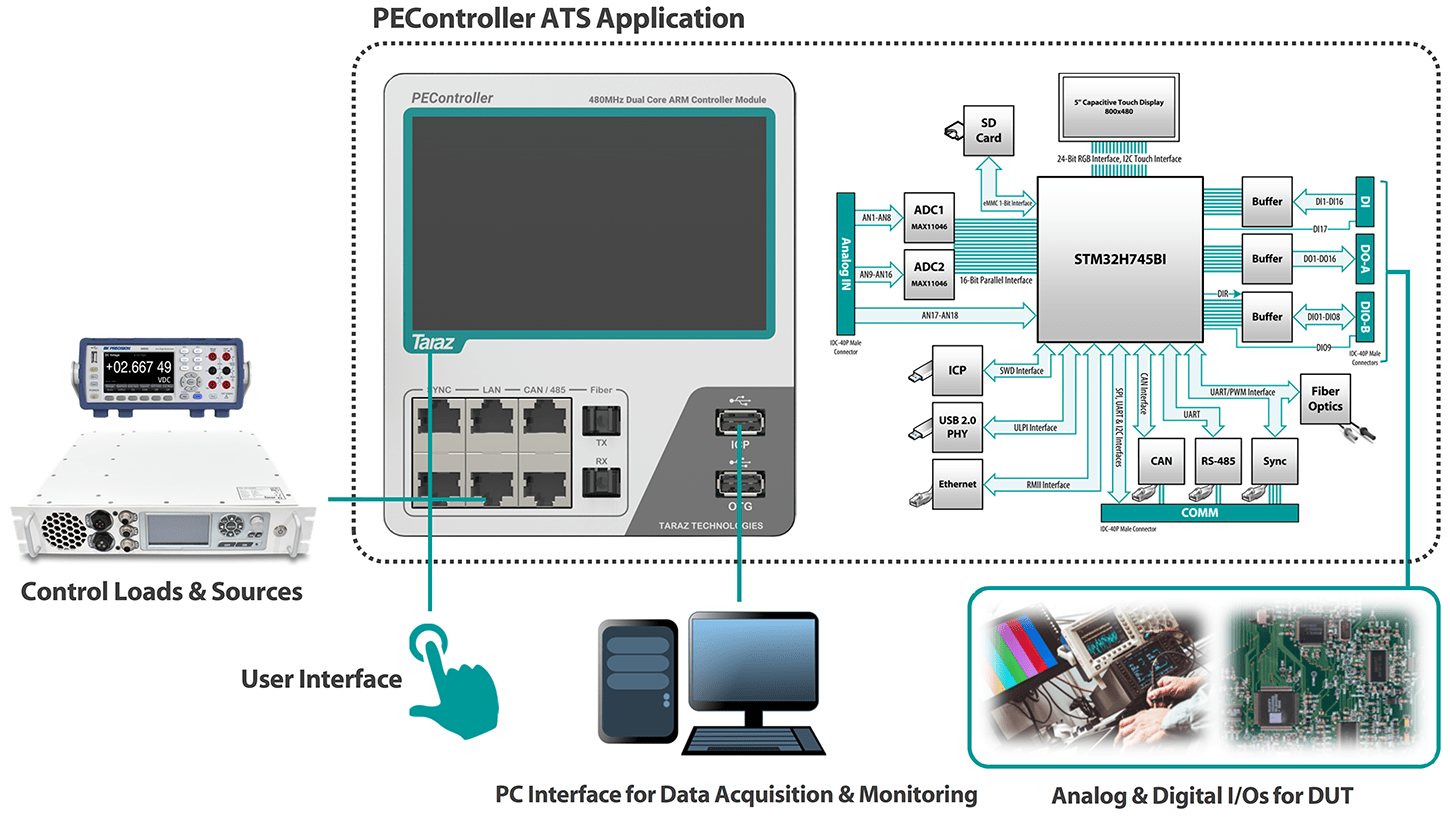

The PEController is also particularly suitable for ATS application due to the availability of large number of I/Os, high accuracy measurements, wide range of communications and 5” touch display for user interface. The available communication protocols can directly command programmable power supplies and loads to perform automatic complex testing sequences, while the high accuracy measurements and digital I/Os interface with the Device under Test (DUT). In addition, the user can enter testing information on the touch screen while the USB PC interface can send the testing data and measurements to make automatic reports or integrate with manufacturing systems.

The PEController can be purchased with an additional intelliSENS software integration license which enables data acquisition on all 16 simultaneous sampling Channels at 100 KSps. The intelliSENS software is a ready-to-use application software designed to assist students, researchers, and engineers in the field of power electronics to develop, monitor & test power electronics systems by replacing multiple lab equipment, such as oscilloscopes, spectrum analyzers, power analyzers, and recorders. It can perform the following:

The PEController is supported by embedded C libraries, multiple application examples and a getting started guide. The following application examples have been implemented:

In addition, more resources will be added including video tutorials and demos. Please check the technical resources page for the latest material.
